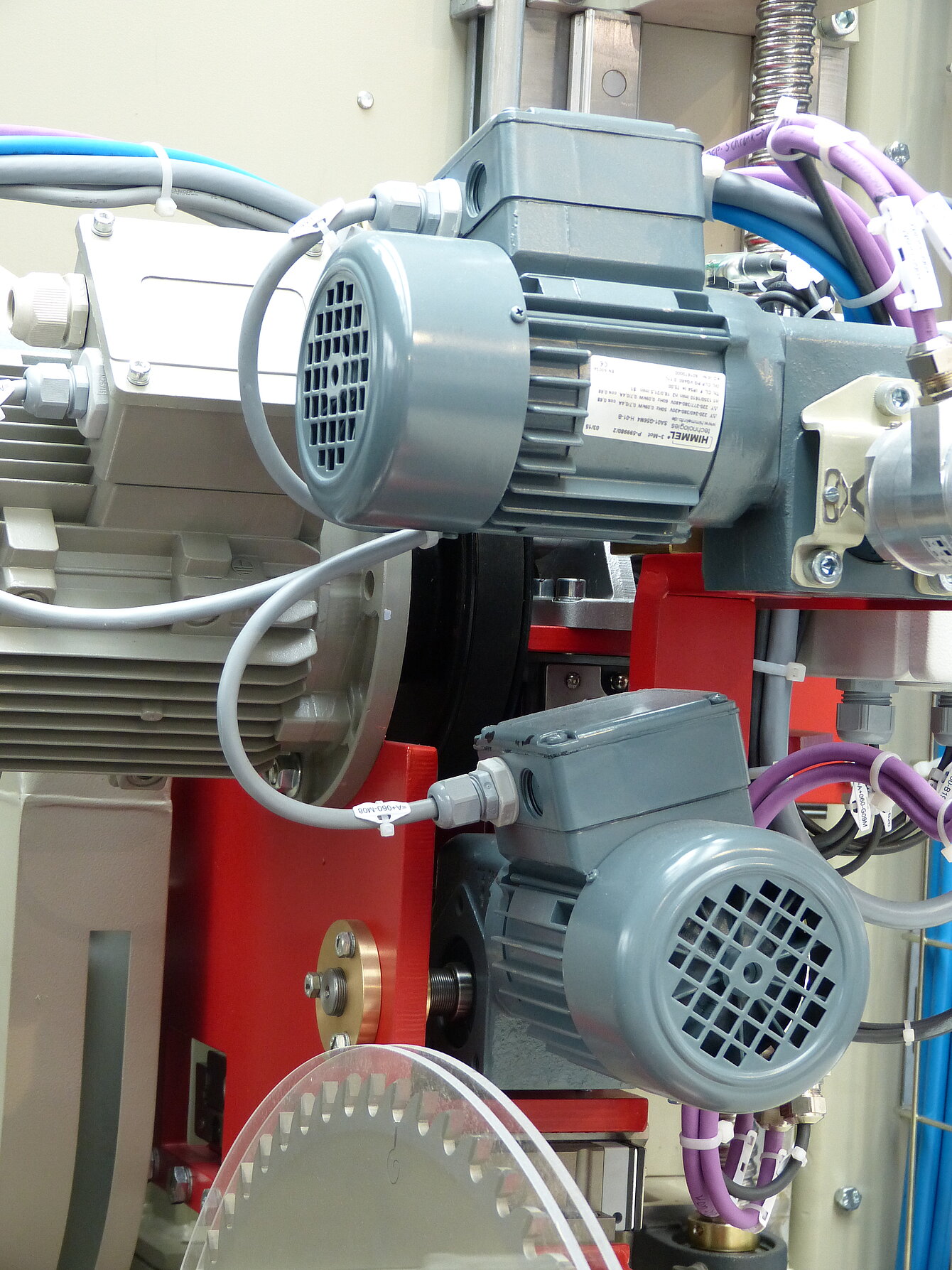

Helical gear motors and units

HIMMEL®helical gear motors of the E series - single-stage, Z - two-stage and D - three-stage, are designed for a wide range of applications. Thanks to their high efficiency, they are suitable for a wide range of applications.

HIMMEL®Gear motors are designed and developed using a modular principle; the output shaft of the built-on motor serves as the mount for the first reduction stage, making the transmission very compact and suitable for installation where space is limited. No matter which HIMMEL®Helical gear motors you choose, you will always receive the right ratio of performance and space requirements.

HIMMEL®Gear motors can be supplied as an integrated unit or with an attached IEC standard motor. The gear motors you need are also available as ATEX variants upon request. Transmissions are available as foot, flange or shaft mounted and can be installed in any position using the relevant amount of lubricant. Our modular system for gear units provides a wide range of options (high gear ratios with best efficiency) so that you can always select a suitable drive for your needs and enjoy the associated cost savings.

HIMMEL®Helical gear motors are also available as tandem gear units for very high gear ratios.

Electromagnetic brakes, backstops and rotational speed monitors can be installed. The design principle used for the gear motors ensures low noise and the minimal installation space makes them space-saving drive solutions.


Commercial Sales
Jana Beckmann
+49 (0) 2542 910 235


Commercial Sales
Marco Ostendarp
+49 (0) 2542 910 382


Technical Sales
Christoph Kloster
+49 (0) 2542 910 253


Technical Sales
Christian Mesken
+49 (0) 2542 910 259


Technical Sales
Ulrich Schwitte
+49 (0) 2542 910 322


  • safe and easy use
  • compact and space-saving design
  • high performance
  • high torques as well as axial and radial forces
  • wide range of gear ratios
  • high running precision and smoothness
  • low noise
  • Modular system (many combinations possible, motors, coupling-adapters etc.)
  • Implementation of bespoke solutions
  • Variable location of terminal box
  • Cable or plug execution for direct connection
  • fast delivery times
  • high availability and fast delivery of important spare parts
  • high degree of vertical integration
  • low maintenance costs


  • Materials handling
  • Food industry
  • Packaging industry
  • Beverages industry
  • Intralogistics and airport technology
  • Building materials, glass, steel and metal industry
  • Bulk materials industry
  • Timber industry
  • Water treatment technology
  • Mining

Features and technical data

Features HIMMEL®Helical gear units and motors

  • Range of torques and gear ratios in modular range
  • Helical gearing
  • Polished tooth flanks for quiet running
  • Cast iron housing for stable and low-vibration continuous operation
  • Performance can be adapted for any application
  • high efficiency
  • single, two and three stage; also available as tandem gear unit for very high gear ratios
  • foot or flange mounted



  • Brake assembly, sensor assembly
  • Shaft design according to your specifications
  • Frequency converter operation
  • ATEX execution
  • Use of a wide variety of electric motors possible by using a coupling adapter;


Further options based on customer requirements

Technical data

  • Power 0.12 kW to 160 kW;
  • Torque 20 Nm to 15,000 Nm
  • Gear ratio 1.5 to 10,000
