GULLIVER® Pneumatic Waste Water Transportation

These days, longer and longer distances must be covered to treatment plants with minimal waste water quantities. Hydrogen sulfide forms in the pressure pipe which leads to the development of sulphuric acid, causing corrosion to metal and concrete materials as well as bad odours.

Waste water disposal is a municipal task of general overall importance. Todays powerful treatment plants are having to draw waste water from ever larger areas over greater distances. These greater distances between consumer and treatment plant must be covered with minimal quantities of waste water. Waste water dwelling for long periods can lead to problems in the pressure main, waste water pipes and the surrounding environment due to the build up of hydrogen sulfide.

Pneumatic waste water transportation systems GULLIVER® and GULLICOMB® prevent H2S formation, corrosion and bad odours. Depending on system conditions, transporting waste water using by applying pressurized air provides the necessary prerequisites for keeping the waste water aerobic and to move it through long pressure pipes without the build up of hydrogen sulfide. The entirety of the pressure pipe is aerated with compressed air each day to empty it and effectively prevent the build up of deposits and a film of sewage. The GULLICOMB® system combines the advantages of pneumatic transport with hydraulic waste water transport.

hoelschertechnic-gorator® designs the pumping station according to the conditions present and builds the stations with consideration to the customer’s requirements. As a manufacturer and plant builder, hoelschertechnic-gorator® is also able to develop special solutions.

hoelschertechnic-gorator® GULLIVER® Flyer
hoelschertechnic-gorator® GULLIVER® Flyer engl
hoelschertechnic-gorator® GULLIVER®

CONTACTS

Technical Sales
Thomas Keller
+49 (0) 2542 916 125
Thomas.Kellerprotected@hoelschertechnic.de


Technical Sales
Peter Koch
+49 (0) 2542 916 123
Peter.Kochprotected@hoelschertechnic.de


Technical Sales
Felix Pollmann
+49 (0) 2542 916 131
Felix.Pollmannprotected@hoelschertechnic.de


Technical Sales
Karin Schadomski
+49 (0) 2542 916 114
Karin.Schadomskiprotected@hoelschertechnic.de



Contact information for our global representatives can be found here

Advantages

  • Ventilating waste water prevents anaerobic build-up of rotting material
  • No bad smells due to the build up of hydrogen sulfide
  • No biogenic sulphuric acid corrosion to concrete and metal elements
  • Adaptive conveyance even of waste water with high concentrations of solid matter
  • Low-wear operation without any rotating parts within the waste water
  • No danger of becoming blocked as the ball passage is
    the same as the pipe diameter
  • No ventilation or bleed valves required in the pipe
  • Affordable laying of pressure pipe at a frost-free depth,
    adapted to the terrain
  • No issues with surges due to the air cushion within the
    pressure pipe
  • Complete drainage of the pressure pipe to prevent
    deposits
  • No bad odours at the pumping station as the
    pre-shaft and working tank are fully emptied
  • No biological contamination of the treatment plant from putrid waste water
  • Solid materials are not crushed into small pieces, thus preventing the build up of sludge in the
    sewer network and optimizing the effectiveness of the separation stage
    in the treatment plant
  • Operators do not come into contact with the waste water, allowing
    for cleaner maintenance work

Applications

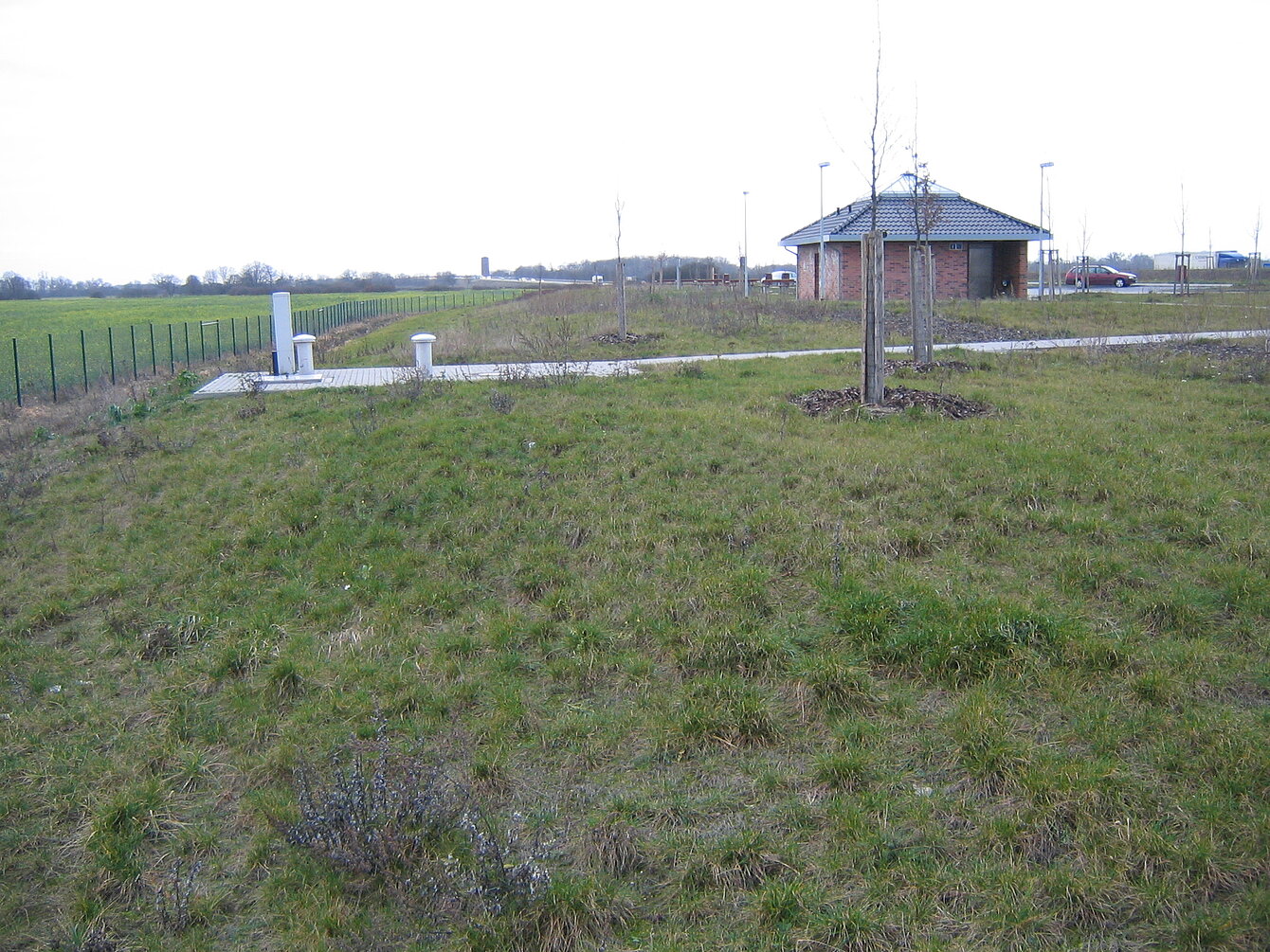

Long pressure pipes with large volumes, e.g.:

  • Closure of small treatment plants
  • Remote regions

Long dwell periods in the pressure pipe, e.g.:

  • Motorway service stations
  • Local recreation areas
  • Camp sites
  • Mixed sewer systems
  • High reserve capacity

Large pumping heights where volume may be low, e.g.:

  • Mountainous regions
  • Pipe laying adapted to the terrain
  • Flushing culverts

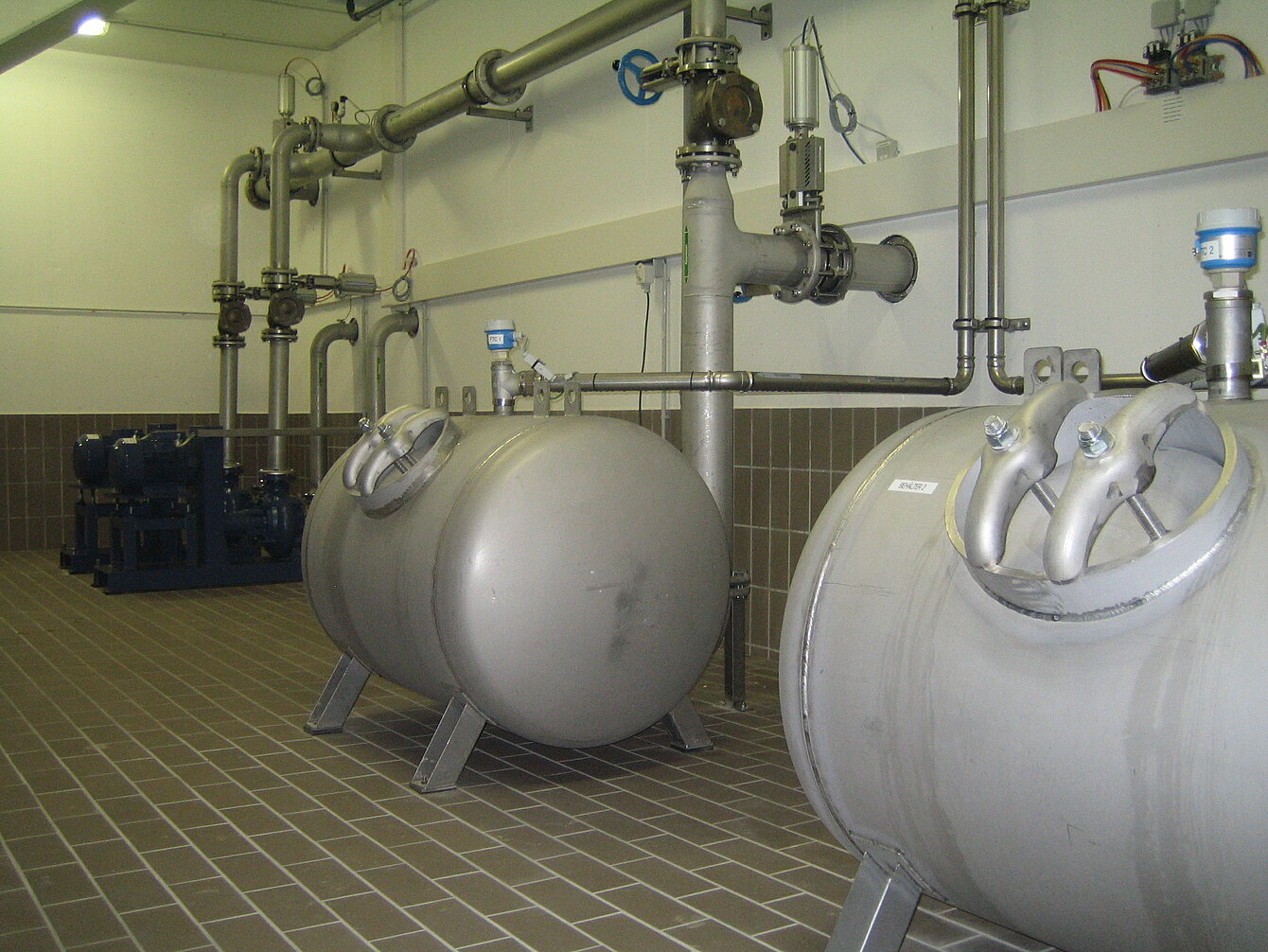

GULLIVER® Pneumatic Waste Water Transportation System

Waste water is collected in a working tank and
transported by compressed air from compressors without blockages
Oxygen is fed into the waste water via the compressed air ensuring
the environment inside the pressure pipe remains aerobic. The entirety
of the pressure pipe is aerated with compressed air each day to empty it and
effectively prevent the build up of deposits and a film of sewage.

GULLICOMB® Pneumatic Waste Water Transportation

GULLICOMB® combines the beneficial properties of
pneumatic and hydraulic water pumping stations.
This technology is preferred where strongly varying
volumes of waste water are to be transported, such as in mixed systems.
Where waste water volumes are low, the principle of
pneumatic waste water transport using compressed air
with all its advantages is used. Where waste water volume is large, a
dry-installed pump allows the larger volume to be transported
with excellent energy efficiency. Compressors provide
aeration for daily emptying, flushing and
cleaning of the pressure pipe.

Compressed air generation

Piston compressor power 1.7 - 4 kW
Screw compressor power 4 - 75 kW

  • High pumping performance with low energy consumption
  • Robust, compact design for long-term use
  • Low vibration and low noise operation
  • Noise-insulation as standard
  • Easy to access for maintenance

Working tank and fixtures

Tank volume 125 – 1750 l
Valve diameters DN 80 – DN 300

  • Tangential joints at lowest point of the tank
  • Waste water working tank with large head holes
  • Capacitive fill level measurement for full working tank
  • Volume flow rate measurement via work tank timing sensors
  • Pneumatic valves for high cycle rates

Automation technology

Standard design using Siemens S7-1200, touch panel and extensive expansion options

  • Visualizations to guide the operator incl. help functions
  • Flow rate and operational data collection
  • Variable automatic aeration with various programs
  • Process data logging
  • Integration with remote control systems
